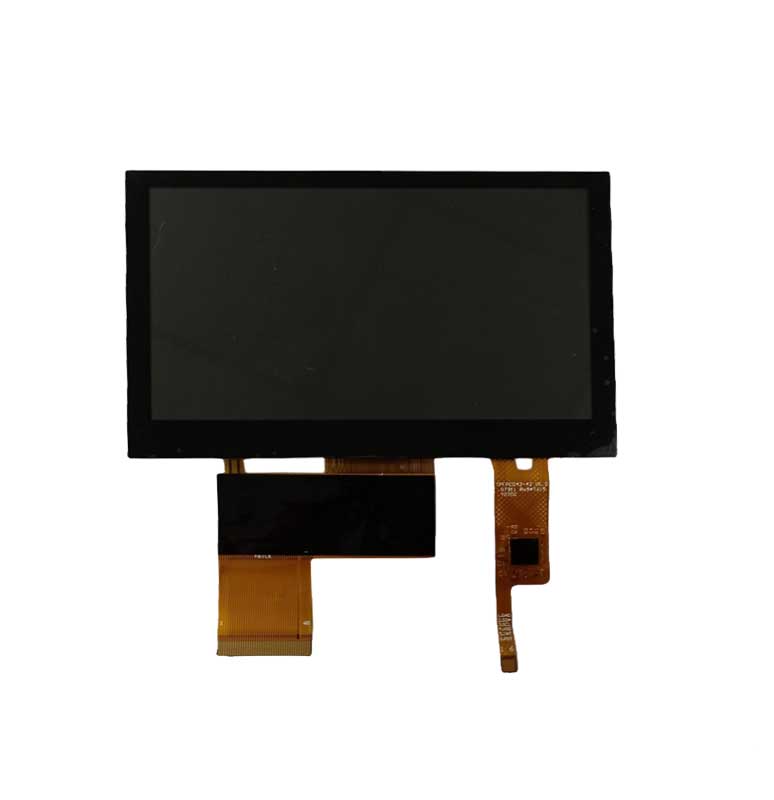

OSD0430T5657-128

4.30" Free-View TFT-LCD Landscape WQVGA ( 480 x 272 Pixels )

This full-view 4.3 TFT is WQVGA (480xRGBx272) resolution and features a 24-bit (16.7M color) RGB interface and Sunlight Readable Backlight. This configuration comes with projective capacitive touch using GT911 touch IC in I2C interface mode.

SKU:5657
Category:TFT-LCD

References
Details

General

Technology:

Free-View TFT-LCD

Diagonal Size:

4.30"

Resolution:

480 x 272 Pixels

Polarization Type:

Free-View ( IPS / MVA )

Mechanical

Outline:

105.500 x 67.200 x 4.570 mm

Active Area:

95.040 x 53.860 mm

Pixel Size:

0.198 x 0.198 mm

Interconnect:

Connector on Module : 40-pin

Optical

Viewing Angles:

( 80 ↑ / 80 ↓ / 80 ← / 80 → )

Contrast Ratio:

800 : 1

Brightness:

850 cd/m²

Electrical

Display Interface:

RGB

Display IC:

SC-7283-G4

Lighting:

LED ( 2 rows of 8 LEDs )

Response Time:

30 ms

Color Depth:

24-bit ( 16,777,216 colors )

Color Depth:

10,900 mW

Touchscreen

Touchscreen:

Capacitive (Projected)

Touch IC:

GT911

Reliability

Storage Temp:

-30 to 80 ℃

Operating Temp:

-30 to 80 ℃

Lighting Life:

30,000 hrs
