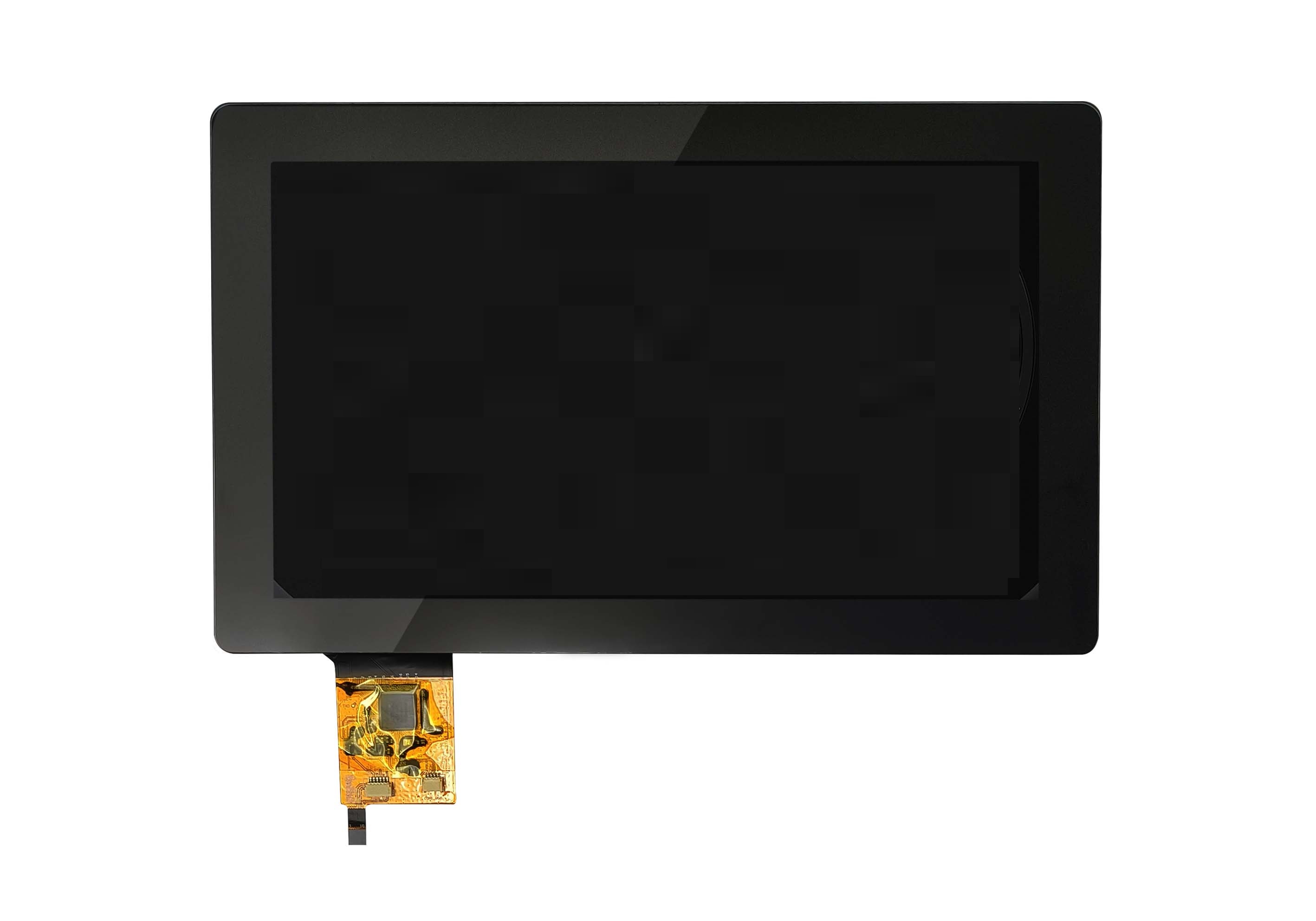

OSD1010T6107-128PC
10.10" Free-View TFT-LCD Landscape WXGA / HD ( 1280 x 720 Pixels )
This 10.1 inch TFT is a industrial wide-temperature solution for some of the more demanding environmental system conditions. Featuring a high-brightness backlight for sunlight readability.
- SKU:6107
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
10.10"
Resolution:
WXGA / HD ( 1280 x 720 Pixels )
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
260.000 x 160.000 x 8.150 mm
Active Area:
224.640 x 126.360 mm
Pixel Size:
0.1755 x 0.1755 mm
Interconnect:
Connector on Module : 40-pin
Optical
Viewing Angles:
( 85 ↑ / 85 ↓ / 85 ← / 85 → )
Contrast Ratio:
1200 : 1
Brightness:
1000 cd/m²
Electrical
Display Interface:
LVDS
Display IC:
EK79202D
Lighting:
WHITE LED ( 4 rows of 12 LEDs )
Response Time:
30 ms
Color Depth:
24-bit ( 16,777,216 colors )
Color Depth:
8,400 mW
Touchscreen
Touchscreen:
Capacitive (Projected)
Touch IC:
ILI2511
Reliability
Storage Temp:
-30 to 85 ℃
Operating Temp:
-30 to 85 ℃
Lighting Life:
50,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
