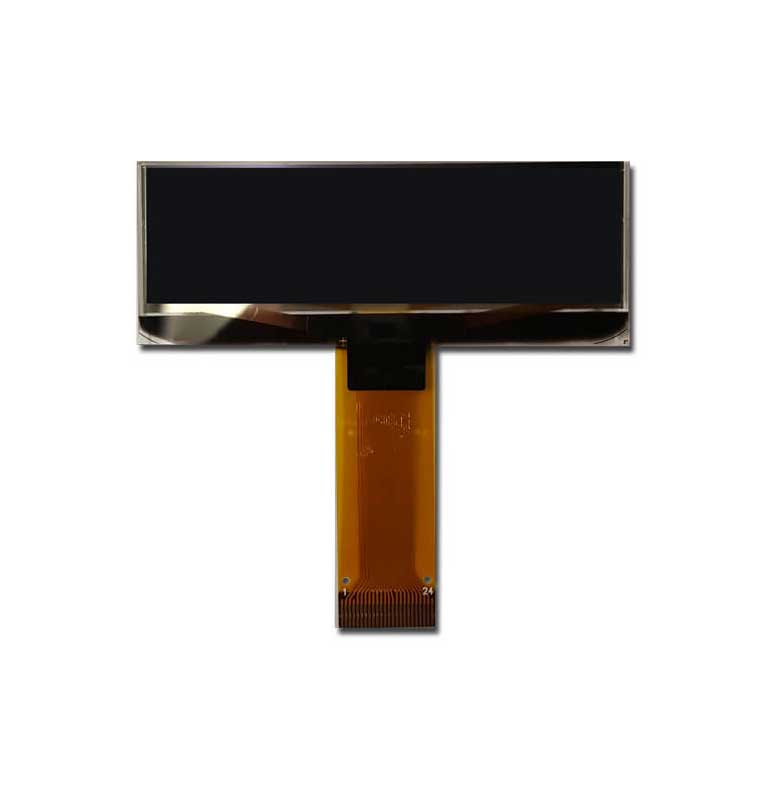

OSD12832P1814-21
2.23" WHITE PMOLED Landscape ( 128 x 32 Pixels )
OSD12832P1814-21 is a monochrome White OLED display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:1814
- Category:PMOLED
General
Technology:
WHITE PMOLED
Diagonal Size:
2.23"
Resolution:
128 x 32 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
5.93 grams
Mechanical
Outline:
62.000 x 60.000 x 2.030 mm
Active Area:
55.020 x 13.100 mm
Pixel Size:
0.43 x 0.41 mm
Interconnect:
Flex (Connector Type) : 24-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
100 cd/m²
Electrical
Display Interface:
CPU, SPI, I²C
Display IC:
SSD1305
Lighting:
WHITE
Response Time:
0.01 ms
Color Depth:
1-bit ( 2 colors )
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 85 ℃
Operating Temp:
-40 to 70 ℃
Lighting Life:
16,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
