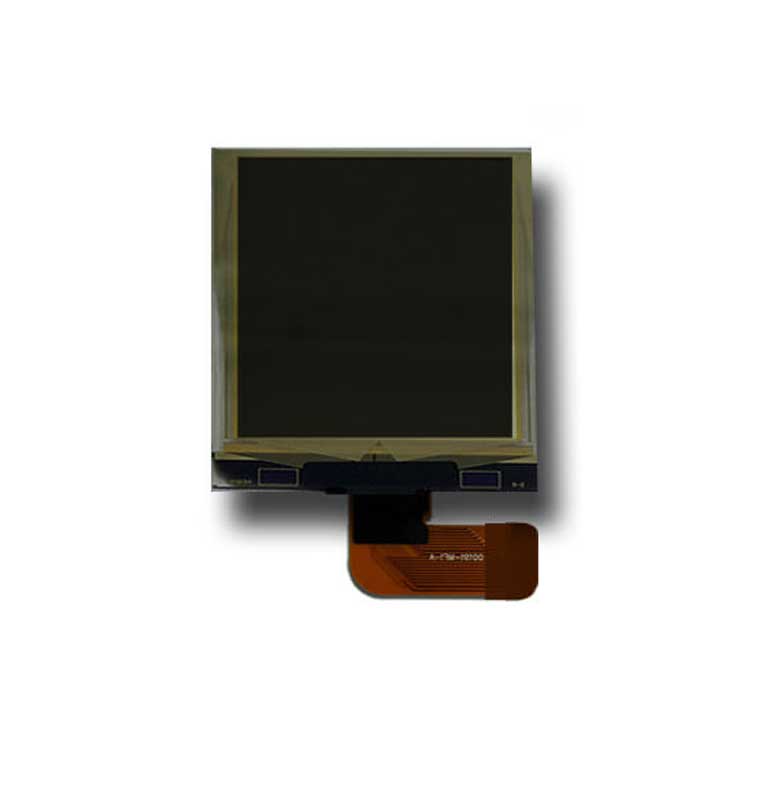

OSD160128P2076-21
1.92" WHITE PMOLED Portrait ( 160 x 128 Pixels )
OSD160128P2076-21 is a monochrome White OLED display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:2076
- Category:PMOLED
General
Technology:
WHITE PMOLED
Diagonal Size:
1.92"
Resolution:
160 x 128 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
4.69 grams
Mechanical
Outline:
34.500 x 61.100 x 1.430 mm
Active Area:
29.908 x 39.340 mm
Pixel Size:
0.226 x 0.246 mm
Interconnect:
: 30-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
80 cd/m²
Electrical
Display Interface:
CPU, SPI, I²C
Display IC:
SH1108G
Lighting:
WHITE
Response Time:
0.01 ms
Color Depth:
1-bit ( 2 colors )
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 85 ℃
Operating Temp:
-40 to 70 ℃
Lighting Life:
16,000 hrs
