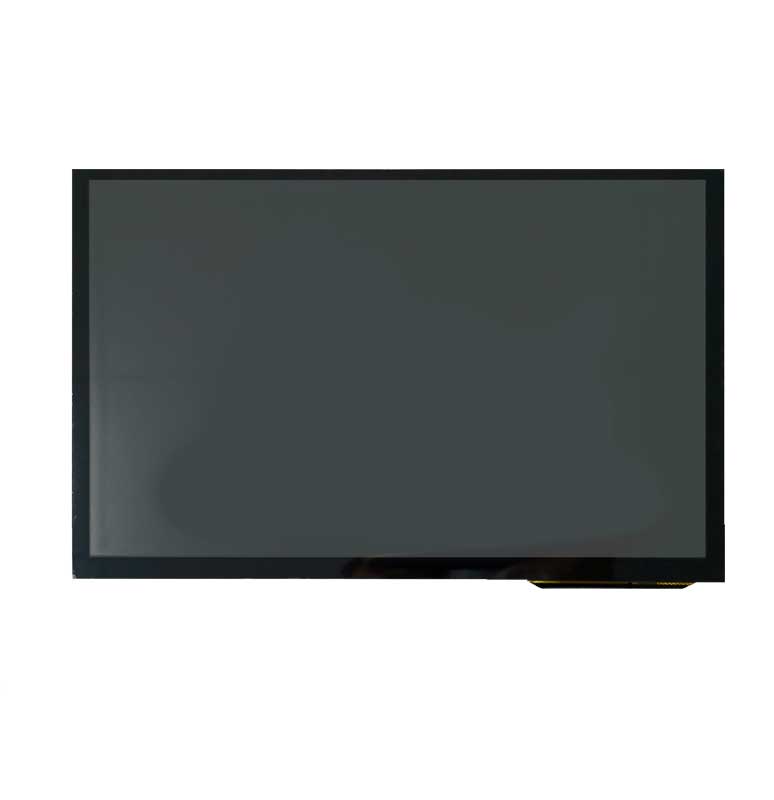

OSD1010T5093-75TS

10.10" Free-View TFT-LCD Landscape WXGA / HD ( 1280 x 800 Pixels )

This 10.1 inch free-view TFT is features a WXGA 1280xRGBx800 resolution utilizing a parallel 24-bit (16.7M color) LVDS interface .This offering features an industrial backlight brightness of 400 cd/m² luminance rated for 50k hours of operation in the field. It also features a multi-touch projective capacitive touchscreen.

SKU:5093
Category:TFT-LCD

References
Details

General

Technology:

Free-View TFT-LCD

Diagonal Size:

10.10"

Resolution:

WXGA / HD ( 1280 x 800 Pixels )

Polarization Type:

Free-View ( IPS / MVA )

Mechanical

Outline:

229.460 x 149.100 x 6.520 mm

Active Area:

216.960 x 135.600 mm

Interconnect:

: 19-pin

Optical

Brightness:

400 cd/m²

Electrical

Display Interface:

LVDS

Lighting:

WHITE LED

Color Depth:

24-bit ( 16,777,216 colors )

Touchscreen

Touchscreen:

Capacitive (Projected)

Reliability

Storage Temp:

-30 to 80 ℃

Operating Temp:

-20 to 70 ℃

Reference Documentation

Online Documentation Feature Is Coming Soon.
