Sunlight-Readable
Auto Temp

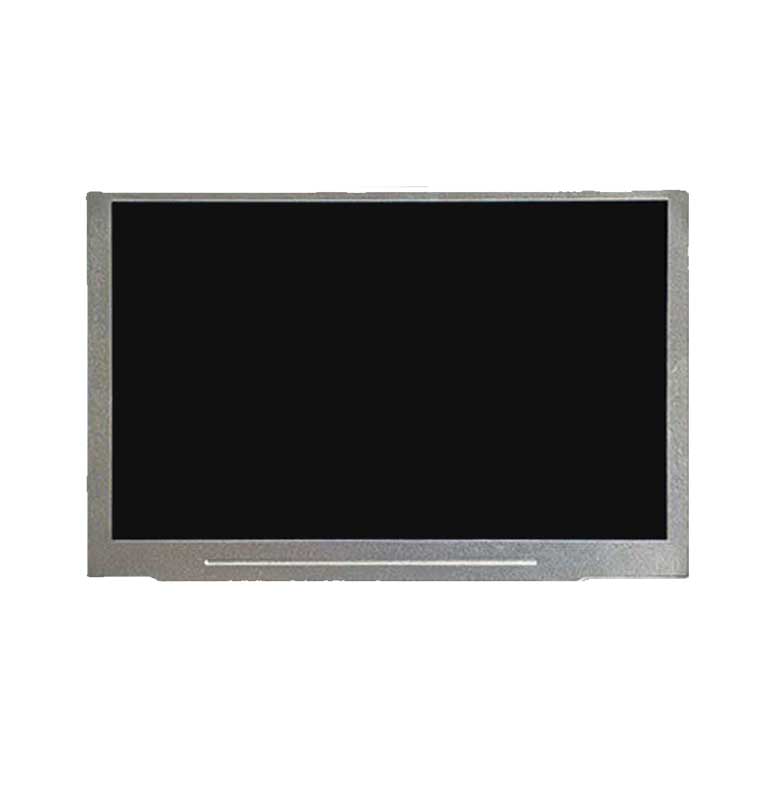

OSD0500T5493-128
5.00" Free-View TFT-LCD Landscape WVGA ( 800 x 480 Pixels )
This 5.0 inch TFT is free-view technology WVGA (800xRGBx480) resolution TFT utilizing a parallel 24-bit (16.7M color) RGB interface . This build features a sunlight readable 1000 nit backlight with 50k hrs reliability and maintains an automotive temperature range supporing -30 to + 85 *C storage and operation.
- SKU:5493
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
5.00"
Resolution:
WVGA ( 800 x 480 Pixels )
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
121.000 x 78.800 x 7.000 mm
Active Area:
108.000 x 64.800 mm
Pixel Size:
0.1350 x 0.1350 mm
Interconnect:
Flex (Connector Type) : 50-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
1000 : 1
Brightness:
1000 cd/m²
Electrical
Display Interface:
RGB
Display IC:
ST72568-G6-E8
Lighting:
RGB LED ( 2 rows of 7 LEDs )
Response Time:
20 ms
Color Depth:
24-bit ( 16,777,216 colors )
Color Depth:
3,332 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-30 to 85 ℃
Operating Temp:
-30 to 85 ℃
Lighting Life:
50,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
