Ultra-Wide
WOSD0430T5666-128TS
4.30" Free-View TFT-LCD Landscape ( 800 x 130 Pixels )

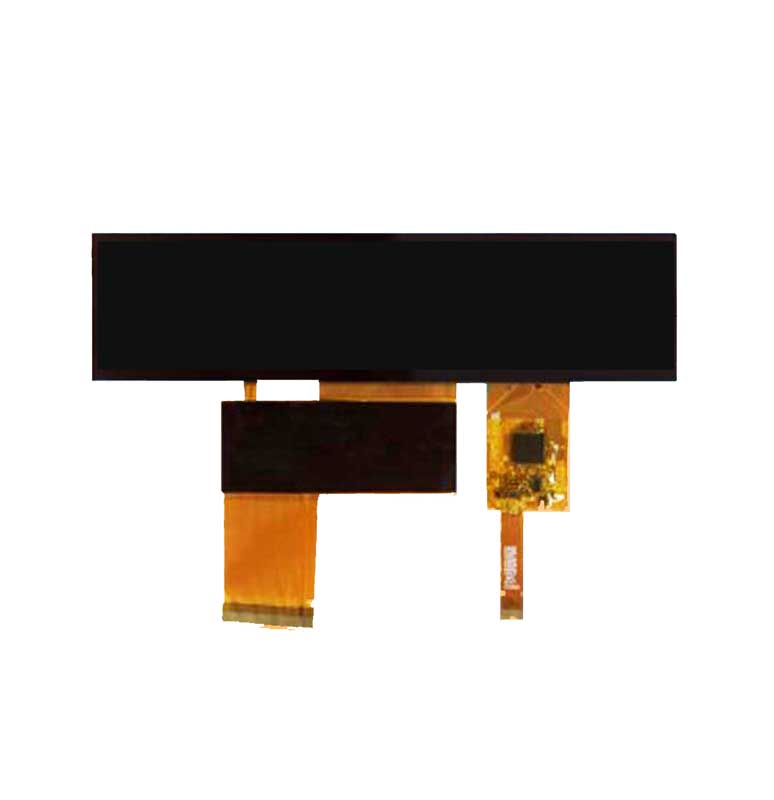

This 4.3 inch TFT is ultra-wide format (bar display) configuration. It features a free-view technology 800xRGBx130 resolution utilizing a parallel 24-bit (16.7M color) RGB interface .This design also includes a projective capacitive multi-point (5-points) detection touchscreen. The touch has embedded MXT640T controller with I2C interface.
- SKU:5666
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
4.30"
Resolution:
800 x 130 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
120.700 x 30.000 x 4.320 mm
Active Area:
108.000 x 17.550 mm
Pixel Size:
0.1350 x 0.1350 mm
Interconnect:
Connector on Module : 40-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
1000 : 1
Brightness:
800 cd/m²
Electrical
Display Interface:
RGB
Display IC:
ST7262
Lighting:
WHITE LED ( 2 rows of 6 LEDs )
Response Time:
30 ms
Color Depth:
24-bit ( 16,777,216 colors )
Color Depth:
8,160 mW
Touchscreen
Touchscreen:
Capacitive (Projected)
Touch IC:
MXT640T
Touch Interface:
I²C
Reliability
Storage Temp:
-30 to 80 ℃
Operating Temp:
-20 to 70 ℃
Lighting Life:
50,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
