OSD25664P0717-21

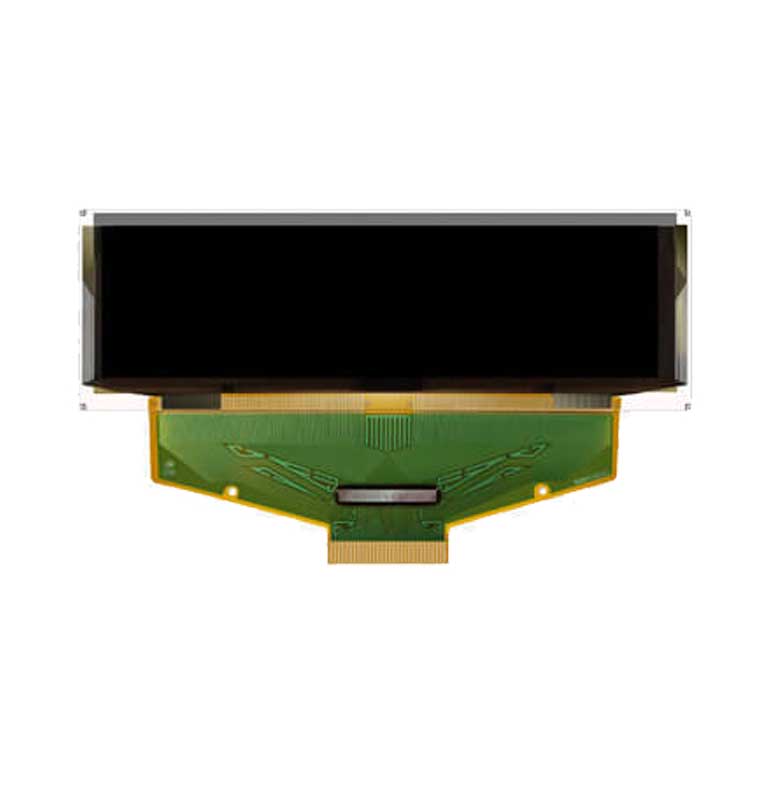

2.80" BLUE PMOLED Landscape ( 256 x 64 Pixels )
OSD2566P0717-21 is a grayscale Blue OLED display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:717
- Category:PMOLED
General
Technology:
BLUE PMOLED
Diagonal Size:
2.80"
Resolution:
256 x 64 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
9.20 grams
Mechanical
Outline:
84.000 x 45.800 x 2.000 mm
Active Area:
69.100 x 17.260 mm
Pixel Size:
0.27 x 0.27 mm
Interconnect:
Flex (Connector Type) : 30-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
80 cd/m²
Electrical
Display Interface:
CPU, SPI
Display IC:
SSD1322
Lighting:
BLUE
Response Time:
0.01 ms
Color Depth:
500 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 80 ℃
Operating Temp:
-40 to 70 ℃
Lighting Life:
10,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
