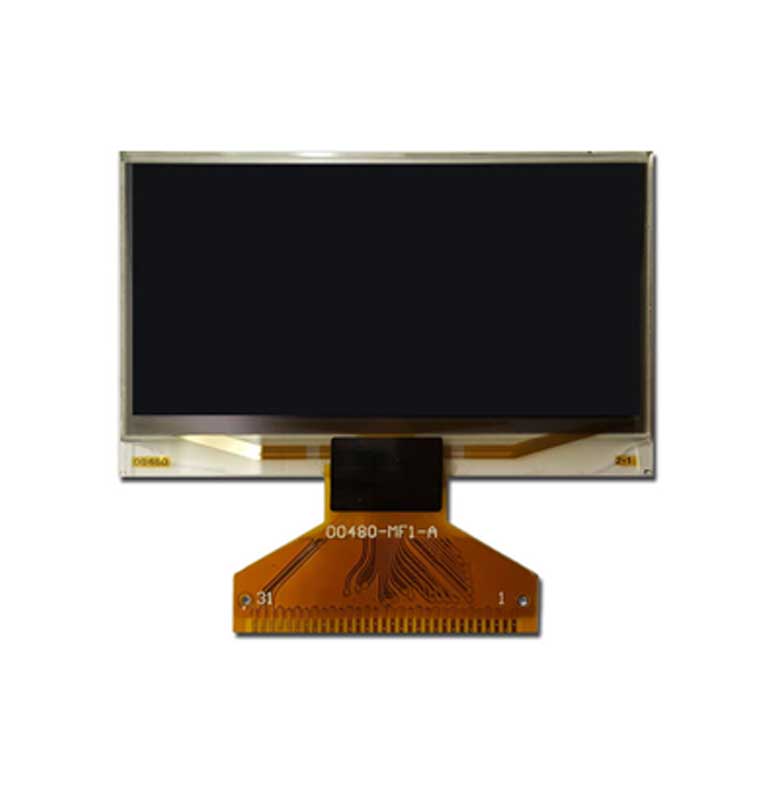

OSD12864P0878-21
2.40" YELLOW PMOLED Landscape ( 128 x 64 Pixels )
OSD12864P0878-21 is a monochrome Yellow OLED display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:878
- Category:PMOLED
General
Technology:
YELLOW PMOLED
Diagonal Size:
2.40"
Resolution:
128 x 64 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
9.20 grams
Mechanical
Outline:
60.500 x 55.600 x 2.030 mm
Active Area:
55.010 x 27.490 mm
Pixel Size:
0.43 x 0.43 mm
Interconnect:
Flex (Solder Type) : 31-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
70 cd/m²
Electrical
Display Interface:
CPU, SPI, I²C
Display IC:
SSD1305
Lighting:
YELLOW
Response Time:
0.01 ms
Color Depth:
1-bit ( 2 colors )
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 85 ℃
Operating Temp:
-40 to 70 ℃
Lighting Life:
40,000 hrs
